Insulating Glass Production Line Butyl Extruder Machine
Payment Type: | L/C,T/T |
---|---|
Terms of Trade: | FOB,CFR,CIF,EXW |
Min. Order: | 1 Set/Sets |
Delivery Time: | 20-30 Days |
Packaging: | container |
---|---|
Brand: | LIJIANG |
Transportation: | Ocean,Land,Air |
Place of Origin: | China |
Supply Ability: | 35 |
Certificate: | CE |
HS Code: | 8464901900 |
Port: | Qingdao |
Basic Info
Model No.: LJTB01
Product Description

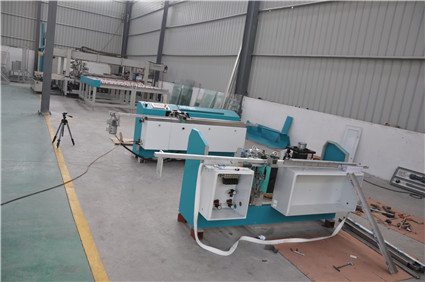

LJTB01 Butty Extruder Machine
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
Technical Data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
Main components
Name | Brand | Original |
PLC | KINCO | China |
Valve | HAWE | German |
Low voltage electrical apparatus | SIEMENS | German |
Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
Frequency converter | KINCO | China |
Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
Main feature
· Touch-screen operation, which makes the machine simple and practical
· Stable temperature and it is convenient to adjust the sealing material automatically
· According to the changed coating speed
· Recognize the aluminum spacer size automatically
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
² Technical Data
10-18MPa | |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600*680*1100mm(L*W*H) |
Weight | 650kg |
KINCO Touch Screen
Clear interface,Simple operation,Smart touch screen,Updated programming.
² Other features
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
